ODS Series

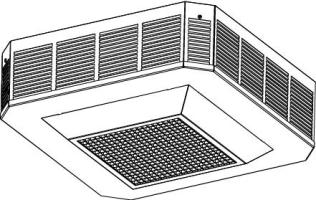

Ceiling Forced-Air Diffuser

-
SA15A1400 CTT01 FUS07 FUS02 TRF02 (600V) TRF03 (347V) TRF13 (480V) LUM02 INT01 LUG04 PRT03 LUG01 THE16 LUG03 SA18B1400 SA01B1400 PRT05 BUS01 MOT23 (277V) FAN06 BUS09 CLF02 SA16A1400 SA16A1400 LUG01 THE16 LUM02 INT01 PRT03 TRF02 (600V) TRF03 (347V) TRF13 (480V) LUG03 LUG06 (ODSB09908) CLF02 PRT26 FUS02 FUS07 LUG04 CTT01 CTT02 (ODSB09908) MOT03 FAN02 BUS09 LUM02 LUM02 Relay Heating element Relay Heating element
Modèles
Models		Volts (ph)Élément chauffant
Heating element
ODSB07508208 (1)SA44A10B0
ODSB09908208 (1)SA44A53B0
ODSB07500240 (1)SA44A10C0
ODSB10000240 (1)SA44A54C0
ODSB07577277 (1)SA44A10G0
ODSB10077277 (1)SA44A54G0
ODSB07538208 (3)SA44A10B0
ODSB09938208 (3)SA44A53B0
ODSB07530240 (3)SA44A10C0
ODSB10030240 (3)SA44A54C0
ODSB07507347 (1)SA44A10D0
ODSB10007347 (1)SA44A54D0
ODSB07504480 (1)SA44A10H0
ODSB10004480 (1)SA44A54H0
ODSB07506600 (1)SA44A10E0
ODSB10006600 (1)SA44A54E0
ODSB07534480 (3)SA44A10G0
ODSB10034480 (3)SA44A54G0
ODSB07536600 (3)SA44A10D0
ODSB10036600 (3)SA44A54D0
